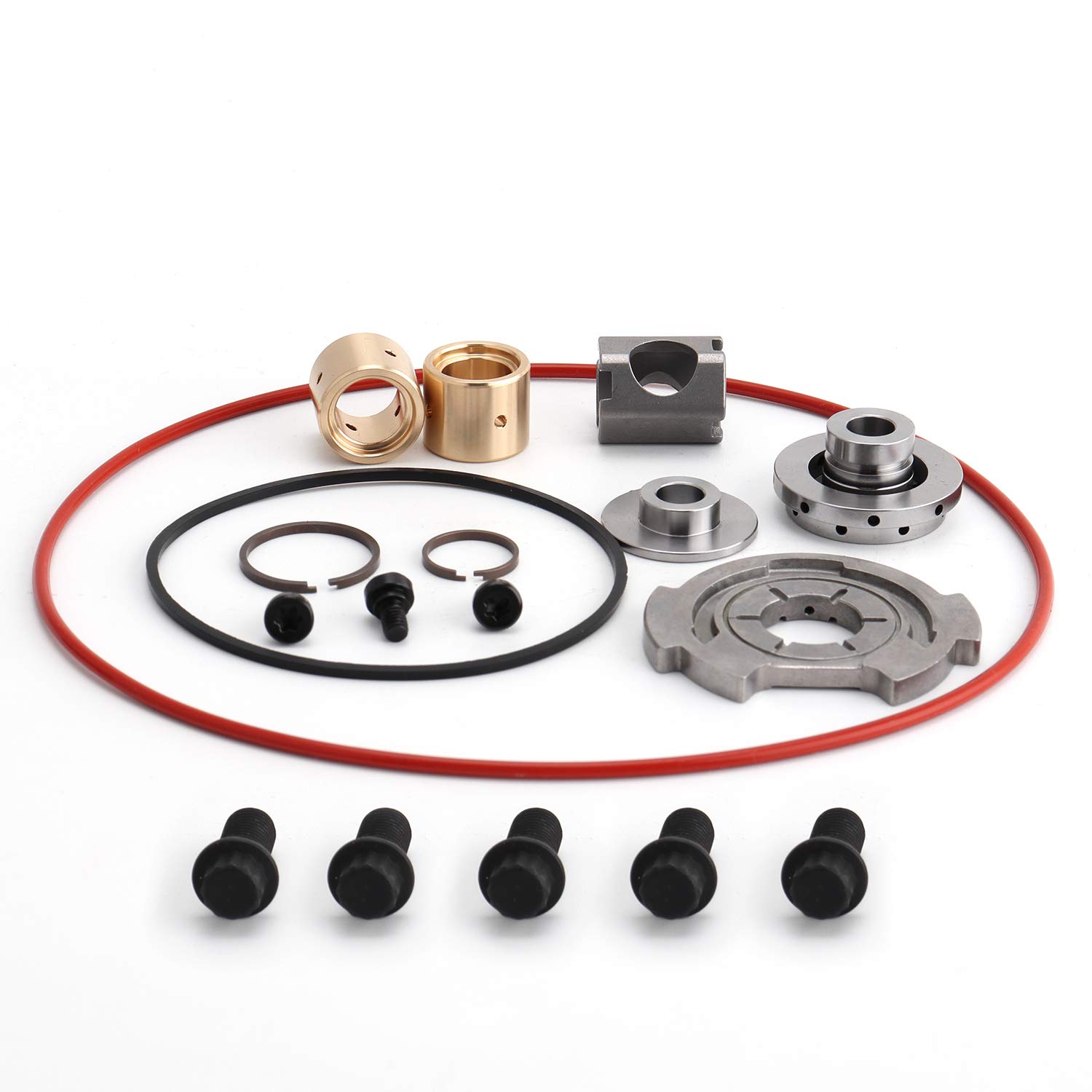

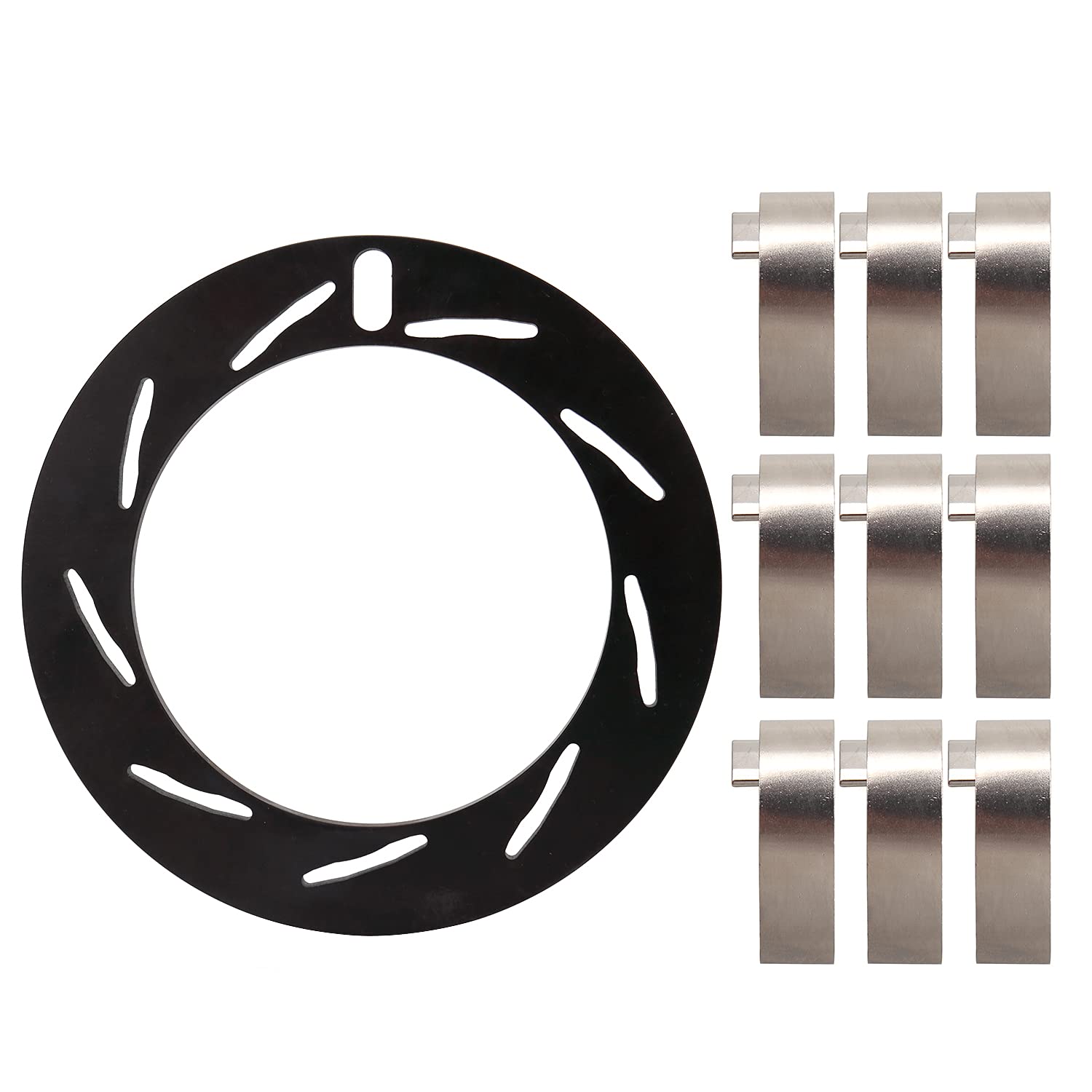

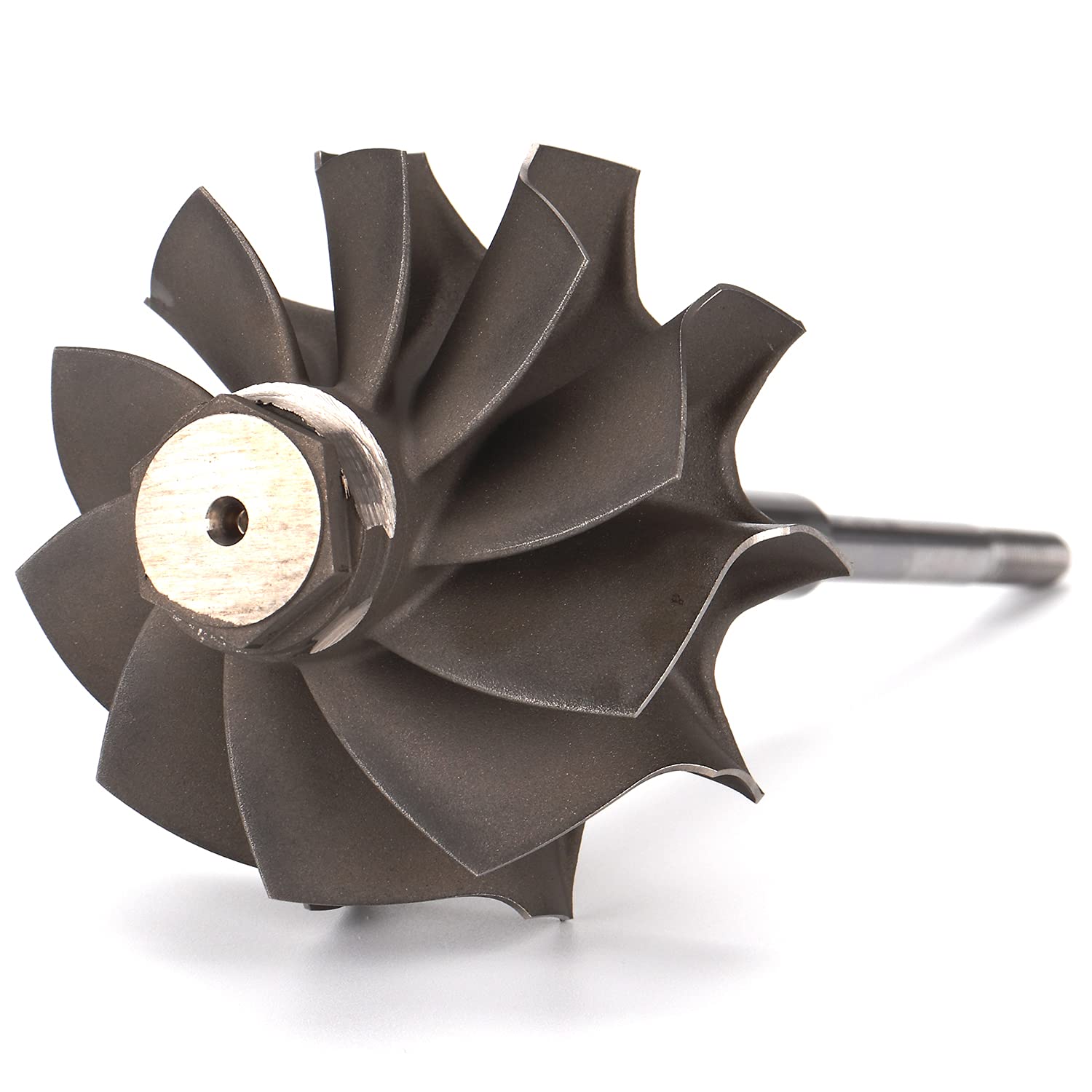

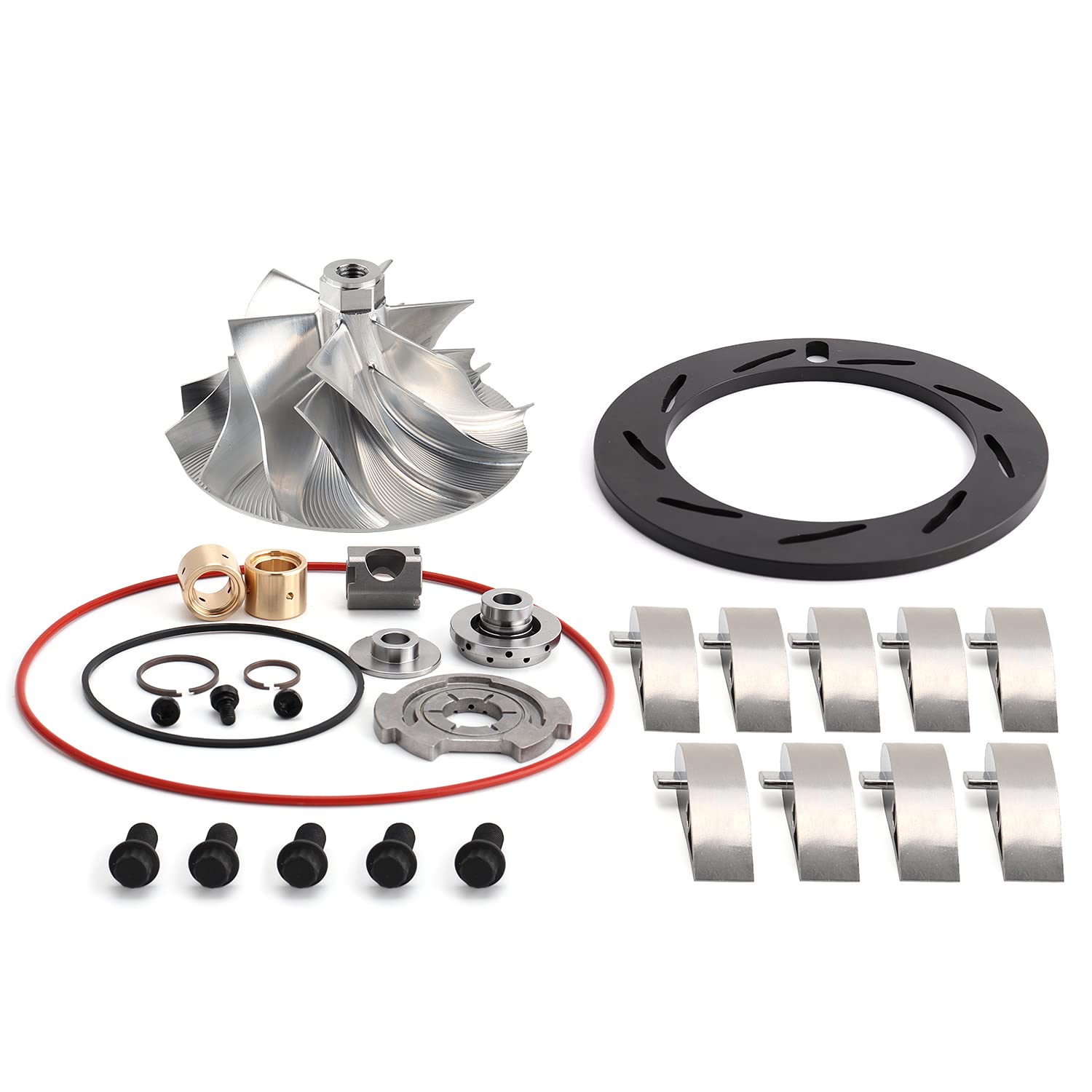

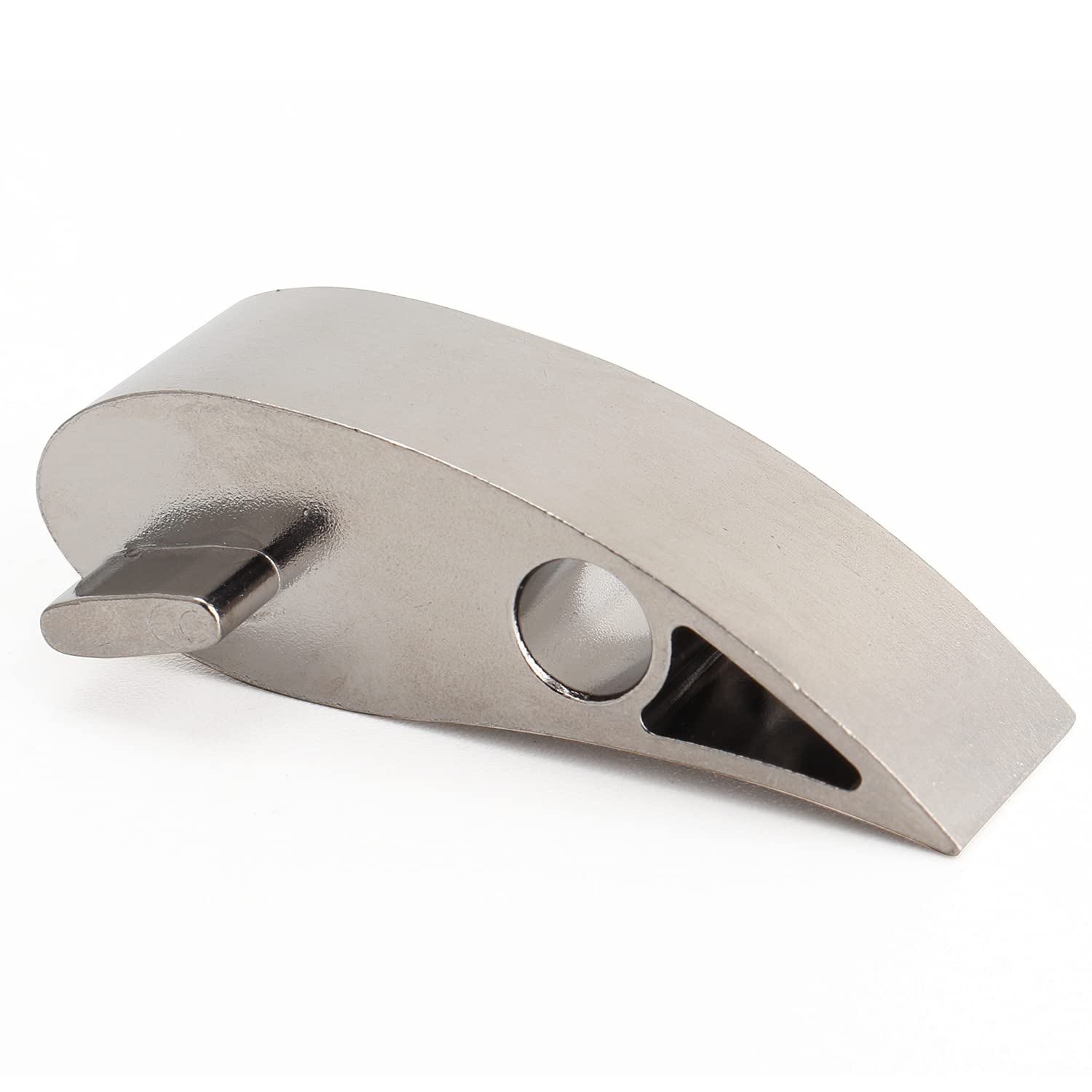

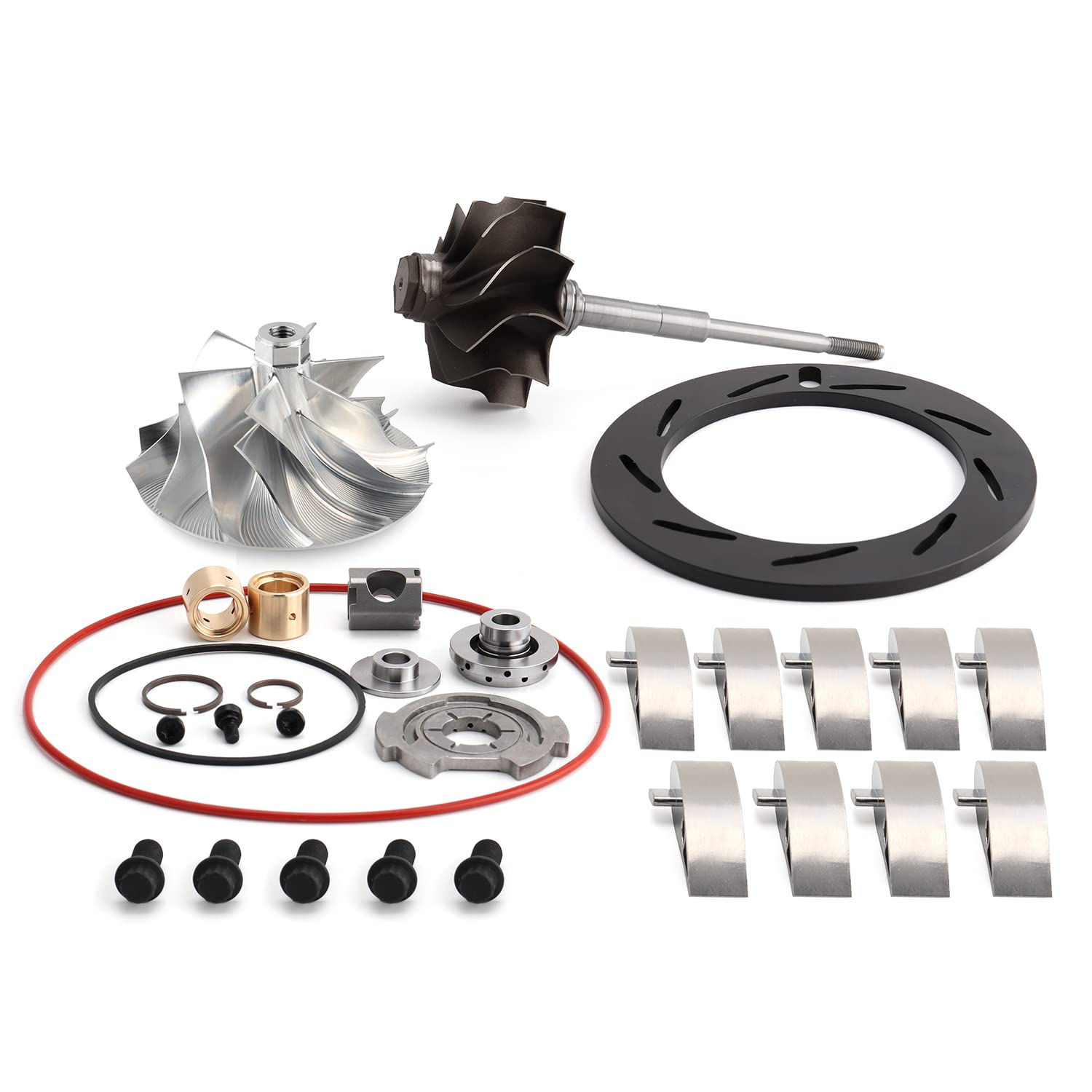

-Application: Billet compressor Wheel Inducer: 56.83mm Billet compressor Wheel Exducer/Tapered Tip Exducer: 82.04mm/87.33mm Billet compressor Wheel Blade Height: 33.81mm Billet compressor Wheel Bore: Threaded-M7x1.0LHT Billet compressor Wheel Blades: 6+6 Stepped gap seal ring on the turbine end Stepped gap seal ring on the compressor end Twin hydrodynamic journal bearings 360-degree thrust bearing system High-Quality Stainless Steel unison/nozzle ring, special Heat Treatment Nitriding Treatment, Stronger & More Wear Resistant & More Durable High Nickle content Alloy 13.2mm vanes Reference OE Part #: 3C3Z-6C885-A -This Rebuild Kit Contains: 1*BILLET COMPRESSOR WHEEL 1*Stainless Steel Nitriding Treatment unison/nozzle ring 9*Nickle content Alloy 13.2mm vanes 1*SEAL O-RING 1*360 DEGREE THRUST BEARING 1*THRUST COLLAR 1*THRUST SPACER 3*SEAL PLATE BOLT 2*JOURNAL BEARING 1*BEARING SPACER 1*SMALL SEAL O-RING 5*HOUSING BOLT 1*COMPRESSOR END SEAL RING(STEPPED GAP) 1*TURBINE END SEAL RING(STEPPED GAP) -Turbine Wheel: Blades: 10 Inducer: 72.7mm Exducer: 64mm Tip Height: 14.5mm Journal Dia: 11.5mm Stem Dia: 7.50mm M7x1.00 LHT Reference Part #: 743250-0014 -Special note: 1. Item(s) might be sent from our overseas warehouse via UPS, DHL, FedEx, etc. at our discretion, you are responsible for the import duty (If Any) upon delivery. 2. This billet compressor wheel is not compatible with 03-04 59mm Inducer. Please check DOUBLE your sizing prior to purchase.
