Professional English Wheel for Metal Shaping - Perfect for Auto Body Repair, Metalworking & DIY Projects - High-Quality Metal Forming Tool for Craftsmen & Hobbyists

Fabricating compound curves in metal is easier than ever with this Mini English Wheel. Whether you're just getting started with an English wheel or simply need a space-saving unit for small projects, this wheel packs huge performance in a small package. Simply a smaller version of the classic English wheel, this unit allows you to fabricate intricate patch panels that may be too small for a larger wheel or don’t require the expense of such a unit. Expand your metal forming skills and create patch panels correctly when you no longer have to try to accurately form a patch panel over your knee.

8 inch throat depth to form a 16 inch wide panel (up to 20 inches on angular plane)

Wheels and anvils rotate 90 degrees to provide unlimited throat depth in that direction for larger projects

Micro-adjustable anvil wheel

Form up to 18 gauge steel and 16 gauge aluminum

Wheels are made of #45 steel with a hardness rating of HRC40

Convenient vise-mount design allows for easy use and storage

Upper Wheel is 3-5/32 “ diameter X 1” wide

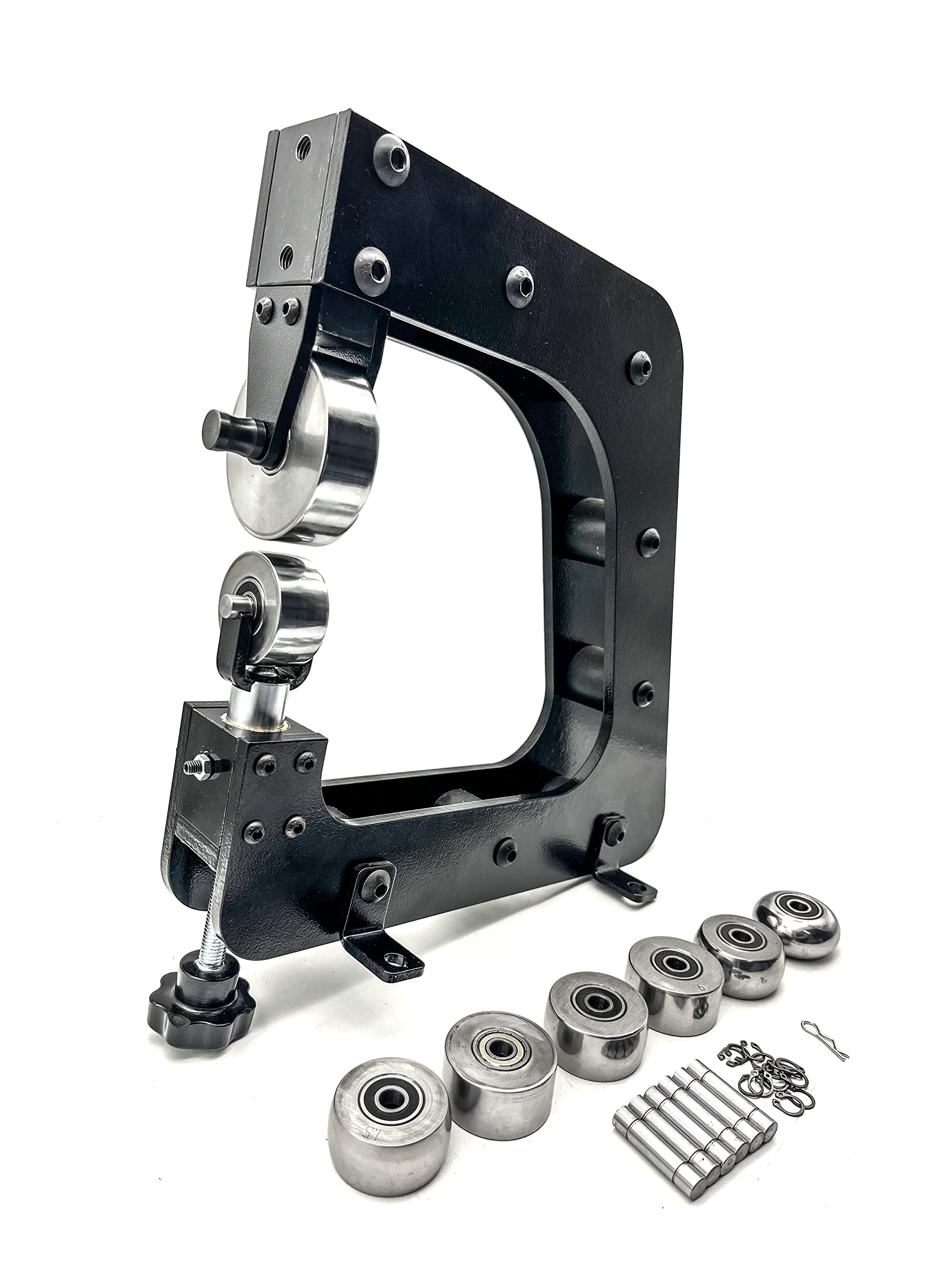

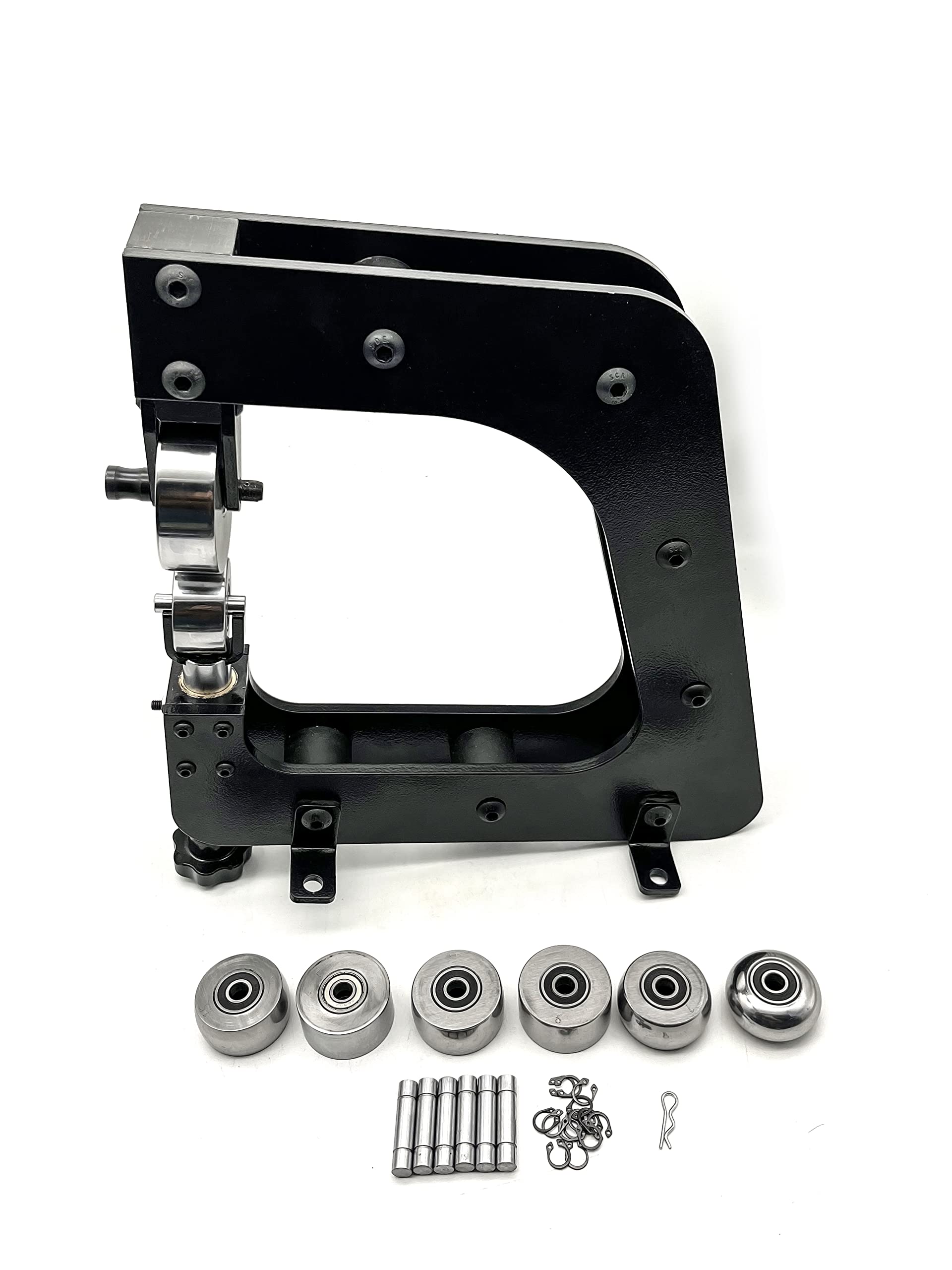

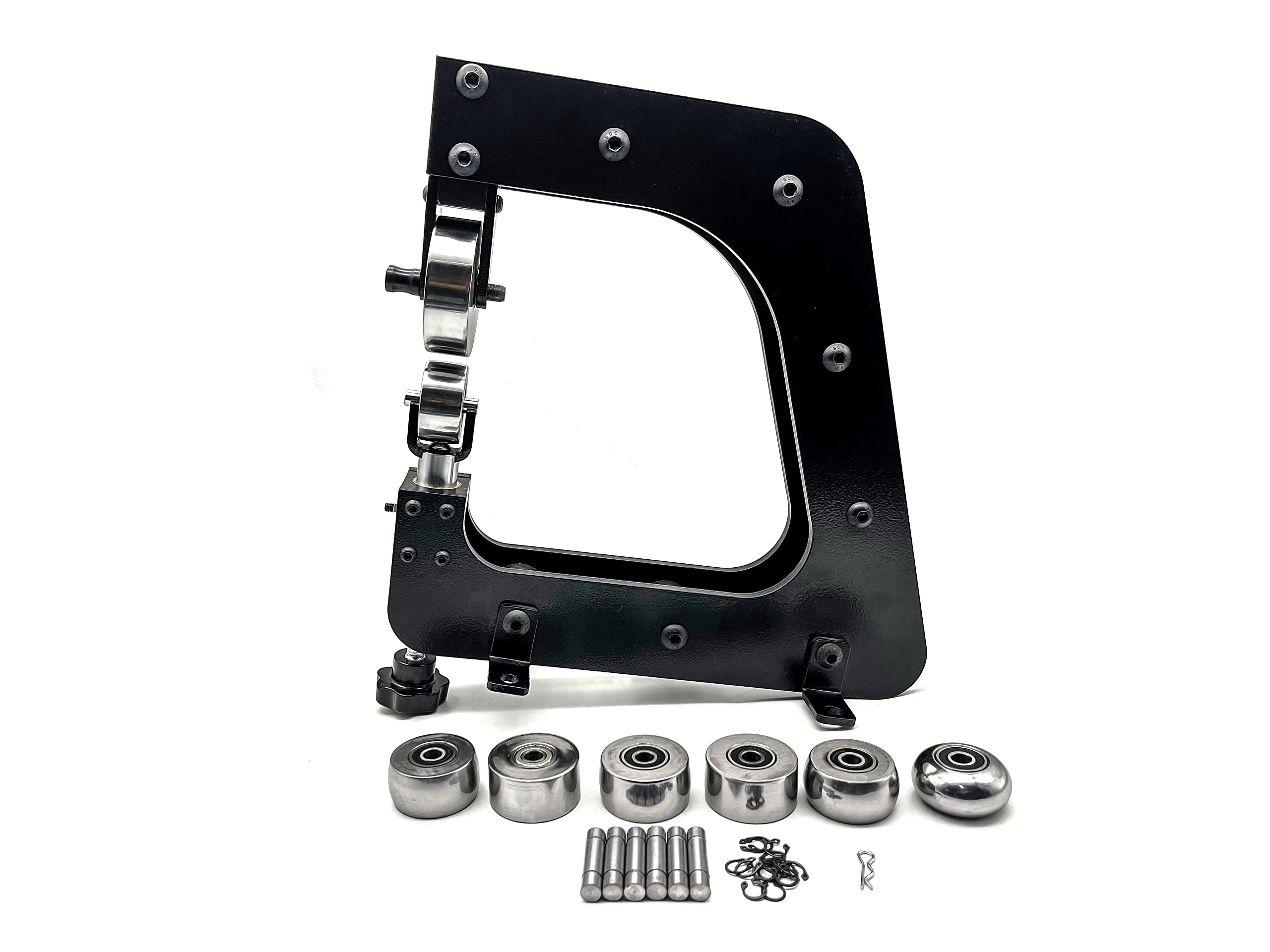

7pcs Lower Die shaping radius 1/2'', 1'', 1-1/2'', 2-1/2'', 5'', 9'', flat

Throat Depth(mm//in) 205/ 8

Capacity (mm/ga) 1.2/18 Sheet Metal & 1.6/16 Aluminum
